Data Applications → Incorta Data Delivery of SAP S/4HANA Data
Overview
Incorta Data Delivery streamlines the integration between SAP S/4HANA and data destinations such as Google BigQuery, Snowflake, Databricks, and Microsoft Fabric. In addition, it accelerates data mart deployment and automates data model design and source schema mapping with Incorta data applications. The data applications provide a new, faster, more practical option for analyzing and understanding your data, with no data modeling or extract, transform, and load (ETL) required.

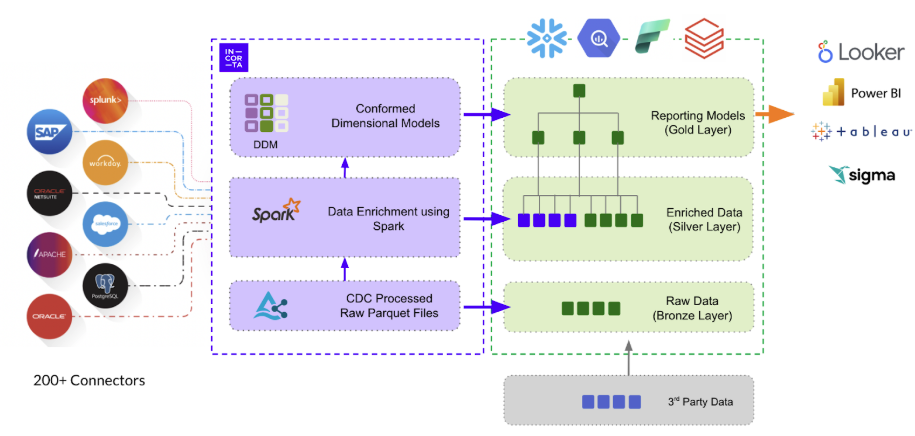

Data delivery overview
- Connect: Using a data application, establish a connection between Incorta and your data source.
- Schema Definition: Load the physical schema tables from your source (e.g., SAP S/4Hana).
- Data Delivery: Leverage Incorta's Data Destination feature to deliver data to the CDC or Reporting layer. Incorta manages all table creation and updates.
- Efficient Data Transfer: Incorta efficiently transfers data from its internal Parquet storage layer to the corresponding target tables.
- Data Synchronization: Incorta fully supports inserts, updates, and deletes from the source data into the target, ensuring data synchronization.
- Visualization: Analyze and visualize the data using Looker or other preferred BI tools.
Star schema offering
Incorta delivers reporting-ready business views through a two-step process.
- First, Materialized Views (MVs) are built on top of base SAP schemas to produce star-scheme-like outputs for use in business schemas.
- Second, Incorta pushes the data for star schema models in the business schema (with the suffix DM) for Order to Cash and Procure to Pay to the target destination. These models incorporate the FICO, Sales and Distribution, and Material Management modules for SAP S/4HANA.
Data delivery configuration steps
Incorta delivers data through the following high-level process:
- First, from the Incorta Applications Marketplace, install and configure the SAP S4 Hana to Bigquery, Snowflake, Databricks, and Fabric data application.
- Configure the data destination for all deployed schemas
- Create a Load Plan with base schemas and fact and dimension table schemas.
- Execute or schedule the load plan the schemas to be delivered to a destination.
Organizing objects for delivery
For data destinations configured with the _ALL schema suffix, you must use a consistent target schema, such as INCORTA_SAPS4_BQ_DATA_APP. Specify the target table prefix as indicated in the table below. This strategy centralizes all tables into a single schema while maintaining organization by functional area through the original schemas. Use the following table and picured example for recommended prefixes for each provided schema:
| Schema | Table Prefix |
|---|---|
| SAPS4_PAYABLES_FACTS_ALL | AP_ |
| SAPS4_RECEIVABLES_FACTS_ALL | AR_ |
| SAPS4_COMMON_DIM_ALL | CMN_ |
| SAPS4_GENERALLEDGER_FACTS_ALL | GL_ |
| SAPS4_SALESDISTRIBUTION_FACTS_ALL | OM_ |
| SAPS4_PURCHASING_FACTS_ALL | PO_ |
| SAPS4_INVENTORY_FACTS_ALL | INV_ |
Data Application objects
This section lists the objects included in this data application.
Schemas
| Business Process | Module | Base Physical Schemas | Fact and Dimension Physical Schemas |
|---|---|---|---|
| Procure To Pay(p2p) | Accounts Payables (AP) Purchasing (PO) Inventory(INV) | SAPS4_CAL_MD SAPS4_MM_MD SAPS4_FI_MD SAPS4_PUR_MD SAPS4_VM_MD | SAPS4_AP SAPS4_IM SAPS4_PO SAPS4_COMMON_DIM_ALL SAPS4_PAYABLES_FACTS_ALL SAPS4_PURCHASING_FACTS_ALL SAPS4_INVENTORY_FACTS_ALL |
| Order to Cash(o2c) | Account Receivables (AR) Order Management (OM) | SAPS4_CAL_MD SAPS4_MM_MD SAPS4_CM_MD SAPS4_FI_MD SAPS4_SD_MD SAPS4_VM_MD | SAPS4_SD SAPS4_AR SAPS4_BL SAPS4_IV SAPS4_SO SAPS4_COMMON_DIM_ALL SAPS4_RECEIVABLES_FACTS_ALL SAPS4_SALESDISTRIBUTION_FACTS_ALL |
| General Ledger | General Ledger (GL) | SAPS4_CAL_MD SAPS4_FI_MD SAPS4_GL | SAPS4_COMMON_DIM_ALL SAPS4_GENERALLEDGER_FACTS_ALL |
Business schemas
| Business Process | Business Schema |
|---|---|
| Common | SAPS4_CommonDimensions_DM |
| Order To Cash | SAPS4_OrderManagement_DM SAPS4_Receivables_DM |
| Procure to Pay | SAPS4_Purchasing_DM SAPS4_Payables_DM SAPS4_Inventory_DM |
| General Ledger | SAPS4_GeneralLedger_DM |
| Inventory | SAPS4_Inventory_DM |
Loading the data applicaiton to destination
To complete a load of data into and Incorta, model it, and push to destination, complete the following steps via a load plan:
Load the base physical schemas
In a load plan, please set the following objects as the first load group.
| Business Process | Module | Physical Schema Load Order |
|---|---|---|
| Procure To Pay(p2p) | Accounts Payables (AP) Purchasing (PO) Inventory(INV) | SAPS4_CAL_MD SAPS4_MM_MD SAPS4_FI_MD SAPS4_PUR_MD SAPS4_VM_MD SAPS4_AP SAPS4_IM SAPS4_PO |
| Order to Cash(o2c) | Account Receivables (AR) Order Management (OM) | SAPS4_CAL_MD SAPS4_MM_MD SAPS4_CM_MD SAPS4_FI_MD SAPS4_SD_MD SAPS4_VM_MD SAPS4_SD SAPS4_AR SAPS4_BL SAPS4_IV SAPS4_SO |
| General Ledger | General Ledger (GL) | SAPS4_CAL_MD SAPS4_FI_MD SAPS4_GL |
Load the fact and dimensional physical schemas
As a part of the load plan above, set set the following objects as the second load group.
| Business Process | Module | Fact and Dimension Physical Schema Load Order |
|---|---|---|
| Procure To Pay(p2p) | Accounts Payables (AP) Purchasing (PO) Inventory(INV) | SAPS4_COMMON_DIM_ALL SAPS4_INVENTORY_FACTS_ALL SAPS4_PURCHASING_FACTS_ALL SAPS4_PAYABLES_FACTS_ALL |
| Order to Cash(o2c) | Account Receivables (AR) Order Management (OM) | SAPS4_COMMON_DIM_ALL SAPS4_SALESDISTRIBUTION_FACTS_ALL SAPS4_RECEIVABLES_FACTS_ALL |
| General Ledger | General Ledger (GL) | SAPS4_COMMON_DIM_ALL SAPS4_GENERALLEDGER_FACTS_ALL |
Additional information
Here are the star schema models for SAP S/4HANA

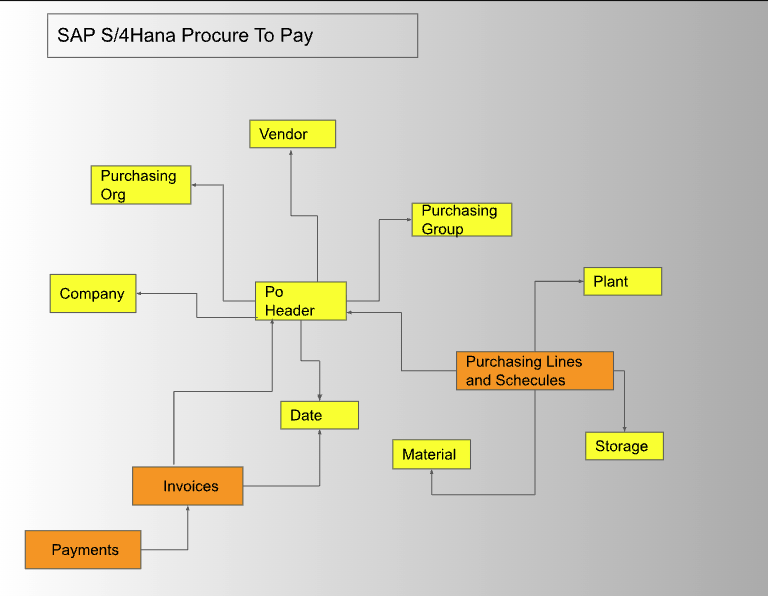

Procure to Pay

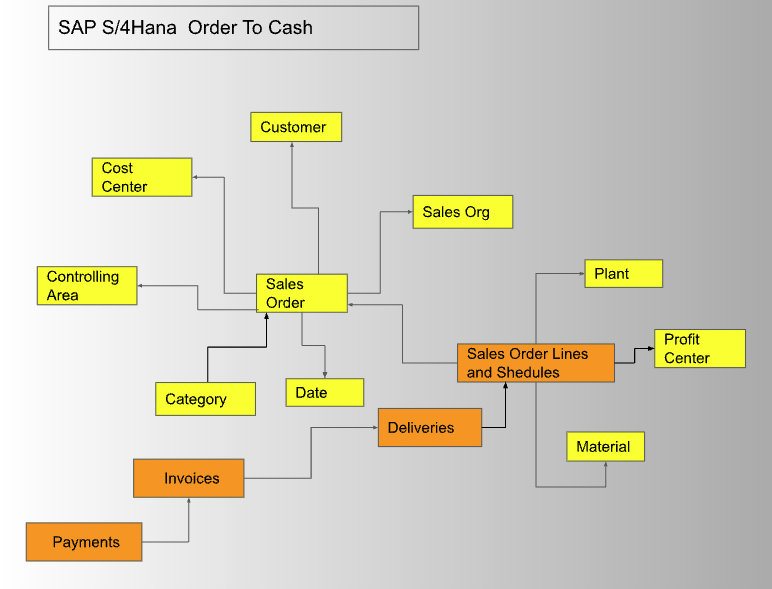

Order to Cash
